I have a new computer at work!

It is a IC3D Custom built computer.  Before I continue l should provide full disclosure.  IC3D is a sister company of Intercad.  Intercad is our SOLIDWORKS reseller.  They became our reseller (again) after they brought Solidtec late in 2013.   The computer was purchased as a normal commercial transaction.  IC3D has not requested this review.

IC3D (Central Innovation) has both a software and hardware side of the business.   They have a couple of interesting add-in for SOLIDWORKS, translationXPERT and IC3D Steel.    They also sell Boxx Computers and for the past few years they have been custom building and selling under their own IC3D brand.

The computer is from their Series 3.2 with the following specification:

  • Intel 4th Generation – Core i7 – 4790K Haswell Overclocked 4.3GHz – Liquid (Sealed system) Cooled
  • 16GHz RAM
  • NVIDIA Quadro K2000 Graphic Card
  • 512GB  Samsung SSD 840 PRO Series SCSI Disk Device
  • Intel Z87 Express Chip Set – Gryphon Motherboard
  • Corsair RM650w Power Supply
  • 6 x USB 3.0 ports – 2 Front – 4 Rear
  • 6 x USB 2.0 ports – 2 Front – 4 Rear
  • Fractal Define R4 Case  – 232 x 464 x 523mm – Titanium Grey

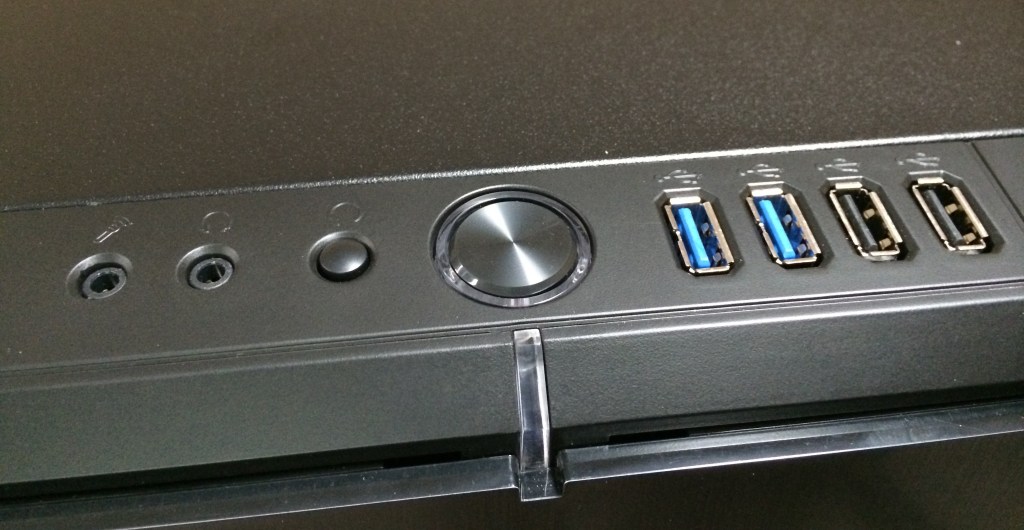

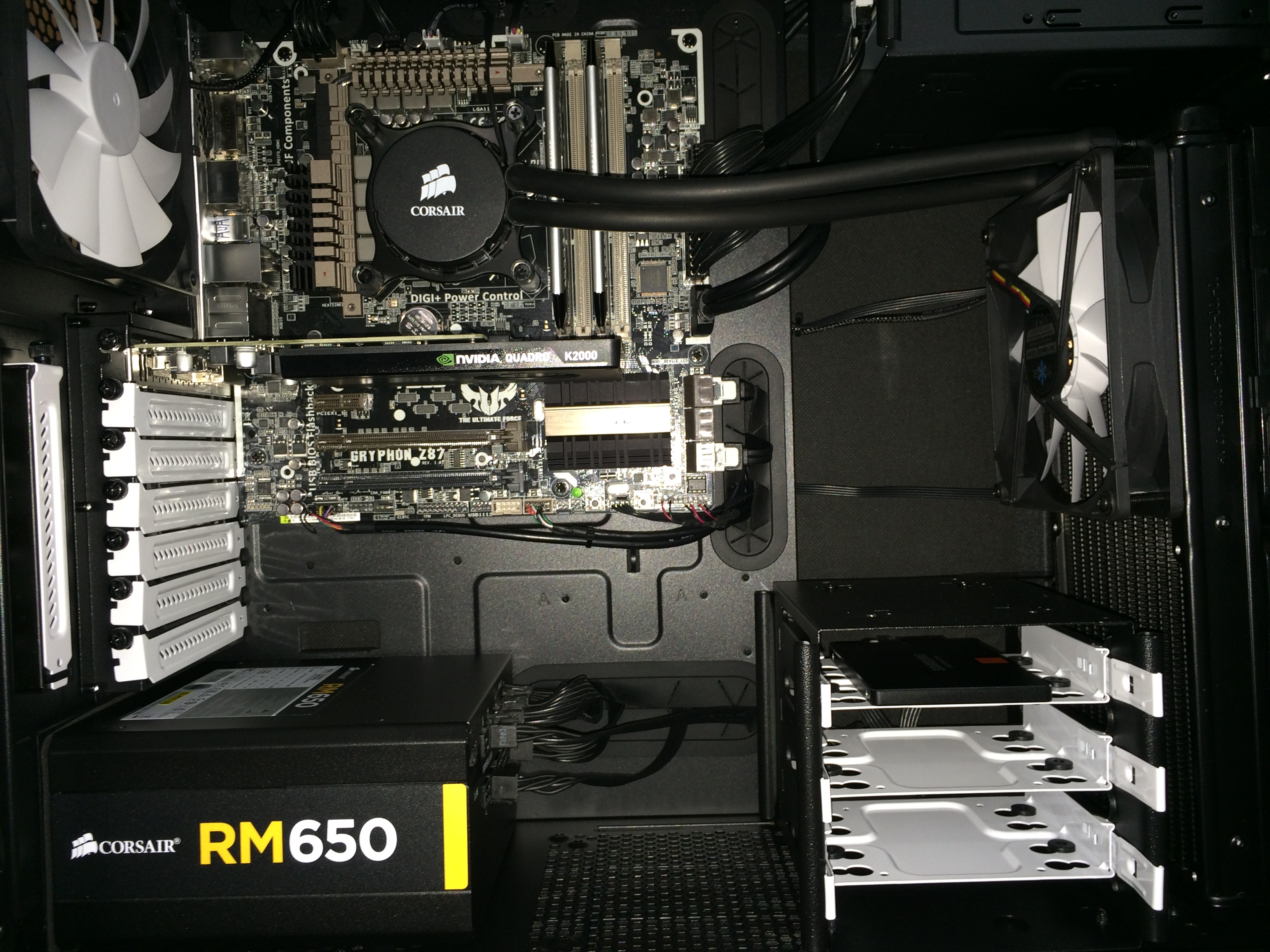

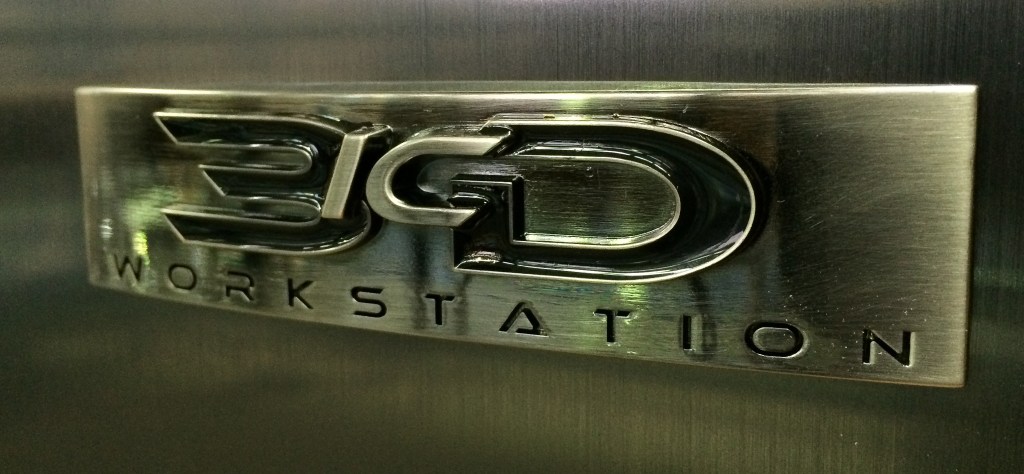

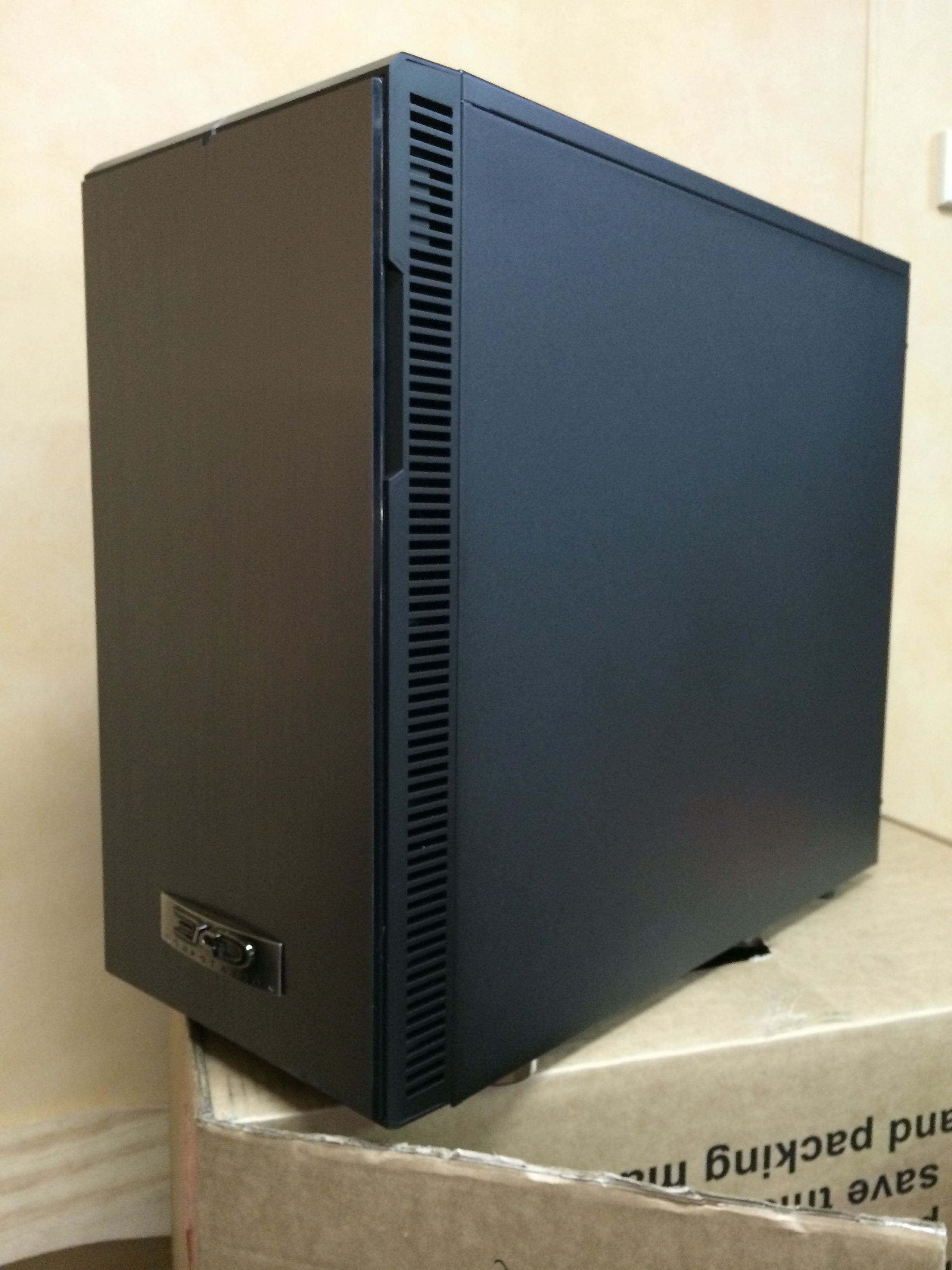

Add to the impressive specification is the 3 year (next day) Warranty with 5 year on some components (Motherboard and Cooling System) IMG_5976A nice touch is the finishing detail of the IC3D WORKSTATION branding  IMG_5979Start button and USB 3.0 and 2.0 – Top at the Front.  IMG_5972USB and Graphic ports at the rear of the computerIMG_5968The build quality is very good the routing of the cabling is neat and tidy.  The radiator for the processor cooling on the right.  The SolidState drive looks a little out of place sitting in a traditional drive slot  IMG_5959Detail attachment of cooling for the processor IMG_5958NVIDIA Quadro K2000 Graphics CardIMG_5962Setting up was problem free and transferring of our SOLIDWORKS files to the drive was made so much faster with the USB 3.0 port.    I was seeing 50-70MB/s transfer from an external hard drive via the USB 3.0 port.

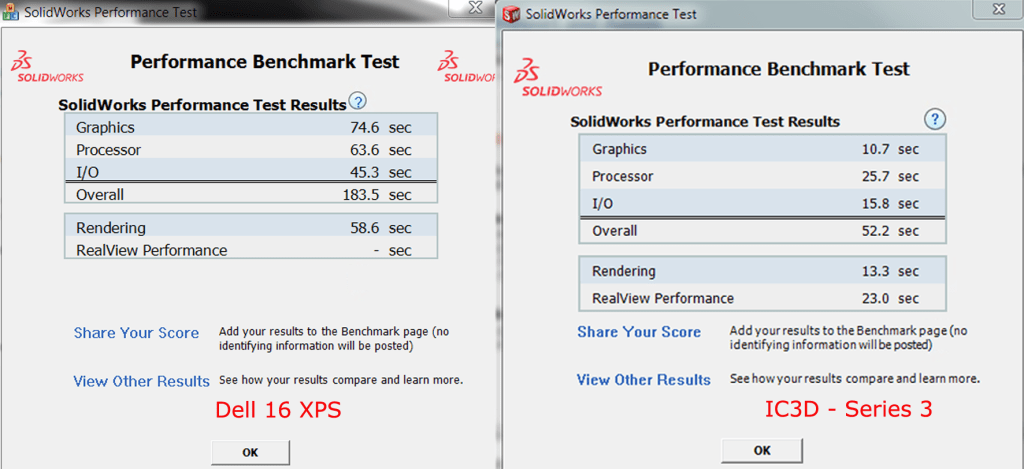

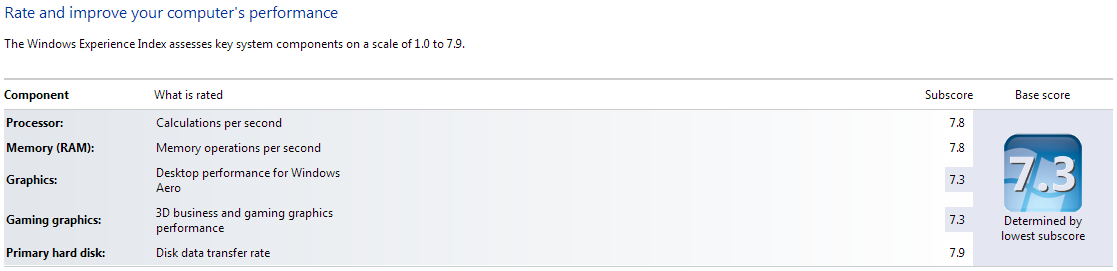

First up was to have a look at the Microsoft Window Experience Performance.  Not to sure as to what I was expecting but maybe a little surprised that it’s only a 7.8 (and not a 7.9) for the Processor (Calculations per second).  Windows - IC3D Next up was the SOLIDWORKS Performance Benchmark Test.  As a comparison I did a final test on my (retiring) Dell 16 XPS (First Generation Core i7-890) with the IC3D.  The result of the IC3D puts it at 15th (of 1575) for SOLIDWORKS 2014 Scores.  (Although there are a couple of suspect scores in the top ten from a few computers with lower specification processor!)SW BenchmarkCharles Culp on his SWtuts site has his (and Anna Wood) presentations (on building and specifying computers) from the past couple of SolidWorks Worlds.  One of the Benchmarks they use is Rendering.   I ran on both the XPS and the IC3D with the quality set at Maximum.  The XPS taking 33m 4.3s.   The IC3D just 8m 11.6sRender TestIt was then I re-read the instructions and the quality setting should have been set at Best (which is a bit of a concern considering there were only 5 lines of instructions) Running the render at Best has the IC3D taking 3m 22.8sBest - IC3DA comparison when opening a few of our Assemblies.  125MB – 1561 Parts – Opening times with the Dell 16 XPS – 64seconds and the IC3D – 25seconds (60% faster)TorinoX AssemblySimilar 97MB – 1843 Parts Opening times with the Dell 16 XPS – 96seconds and the IC3D – 46seconds (51% faster)Trakkaway 700I’ve only had a few days living with the IC3D but I can see already that it is a very impressive machine.  It is whisper quiet and everything just works better from faster start up to opening programs.   It now appears that the slowest part of using SOLIDWORKS will be me!

Even with only a few days of use I can see the time saving.  It’s hard to quantify exactly but I can easily see savings of up to an hour a day.

For more information on IC3D and their IC3D Workstations products contact them at http://ic3d.com.au/contact-us/


7 responses to “IC3D Series 3.2 – My New Work Computer #SOLIDWORKS #IC3D”

  1. My computer has similar specs but without the liquid cooling. I don’t use the overclocking,After seeing the difference, I may need to rethink it.

    1. Justin, That interesting to hear. It’s nice (for me) to know that the over clocking is giving us the performance over the standard processor. Cooling is required with over clocking to keep the system stable & prevent damage to the processor

  2. Sounds like a dandy! I need to research a workstation for myself in the near future and have heard good things about the Boxx systems (for SW, rendering, animation). Just curious if you considered them and any reason you didn’t get one. Thanks…

    1. Certainly considered a Boxx system. IC3D sells Boxx here in Australia. IC3D started building their own systems due to cost. For some strange reason we paid a premium for electronics here. I priced up similar spec (but without overclocking and cooling) from Dell and it would have been $1000 more expensive. I would certainly look at Boxx the additional cost is very quickly returned with time saving

  3. […] and something that we can compare those benchmarks to.   I My day to day work computer is a IC3D custom built desktop  with a Intel Core i7 – 4790K Haswell Overclocked 4.3GHz – Liquid (Sealed system) Cooled […]

  4. […] Server  Overall – 104,7    Whilst the performance results are nowhere near that of my IC3D workstation (or the recently tested MSI WS60)   However if you look at the Share My Score for the Performance […]

  5. […] applications.   For the sake of comparison I ran all the same benchmarks and files against my IC3D custom built desktop  (Intel Core i7 – 4790K Haswell Overclocked 4.3GHz – Liquid (Sealed system) Cooled processor) […]
