UPDATE – SPV – Mobile Broadcast Vehicle – Live & On Air #SolidWorks #Photoview 360

UPDATE – New Images – Completed Vehicle

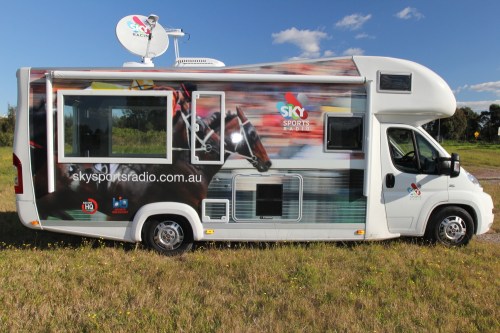

The Mobile Outside Broadcast vehicle is now complete with radio equipment installed and the Graphics fitted.  A few updated images showing it’s full colours!

Big Sports Breakfast http://www.bigsportsbreakfast.com.au/ – Sky Radio

Img_3840

Img_3834

Img_3800

I delivered our latest Special Purpose Vehicle this afternoon.  A Mobile Outside Broadcast vehicle for a Sports Radio Station.  Started life in SolidWorks and we presented a few renderings (PhotoView 360) to the client for consultation during the design stage.

Studio Layout

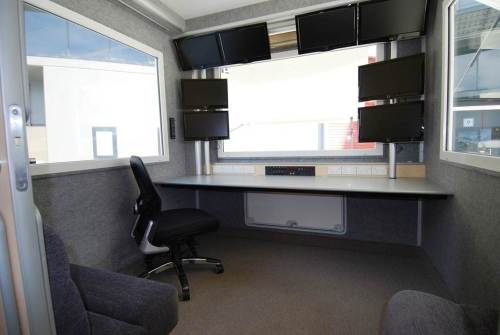

View to Studio

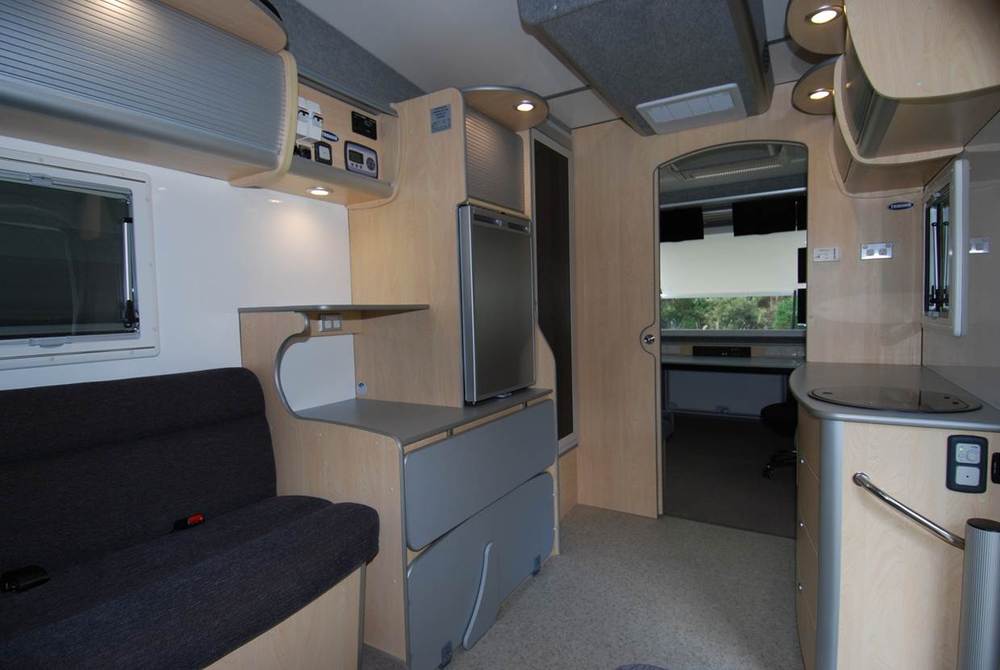

Lounge, Technical Cabinet and Kitchen


38RU 19” Electrical Racking


Double Glazed Studio Viewing Windows, Generator

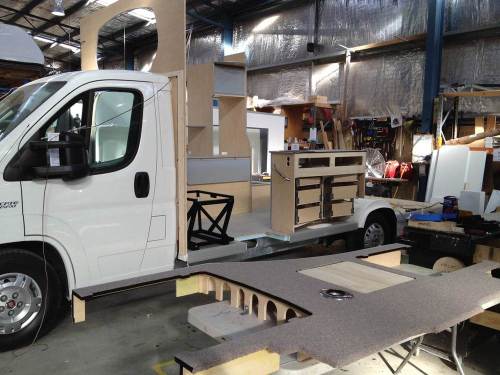

Afew images into the build

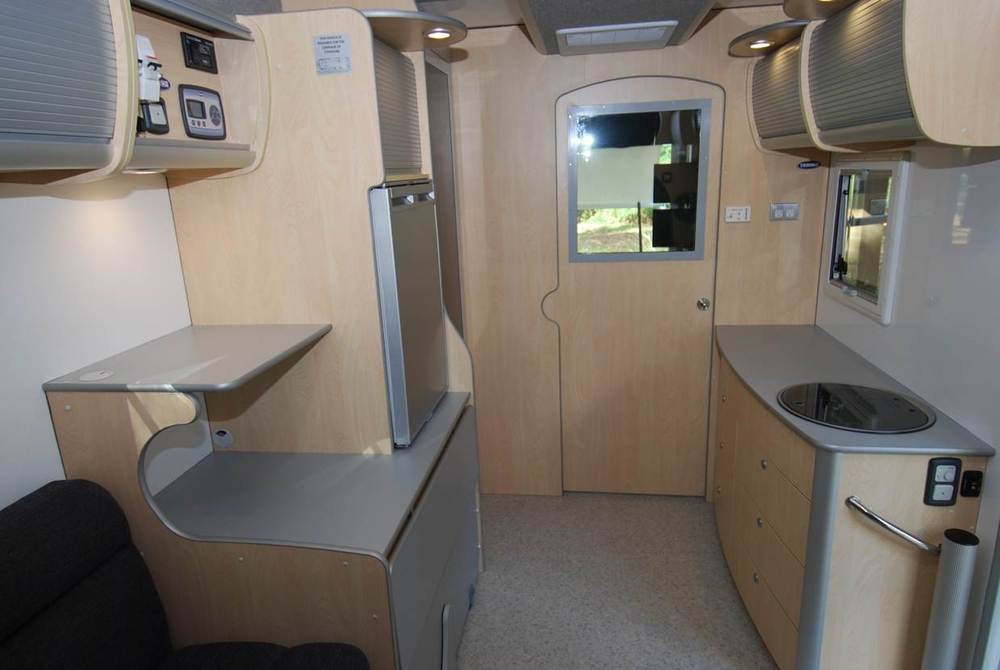

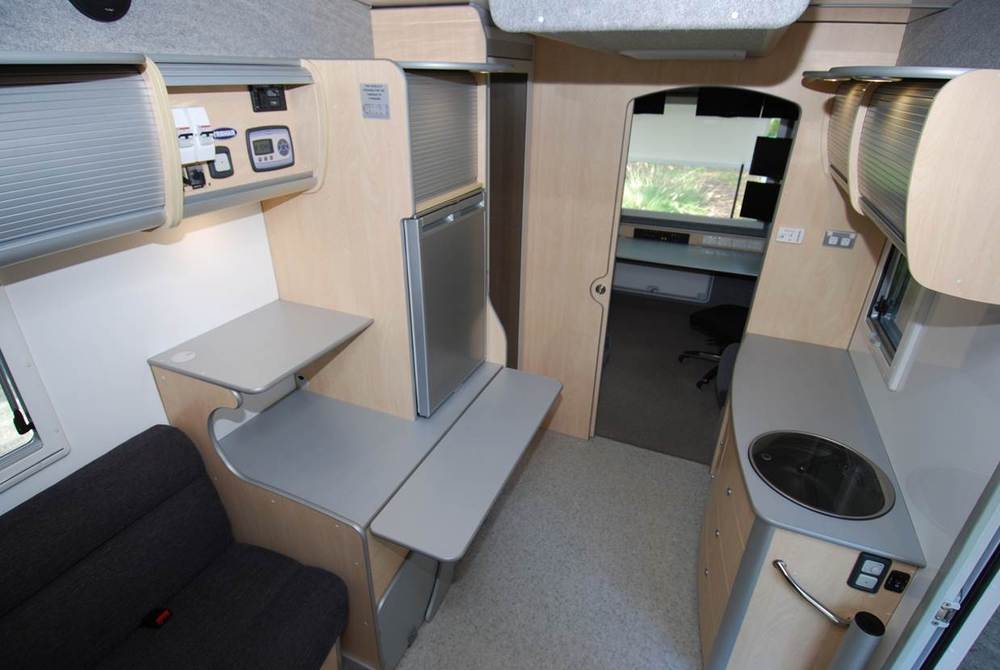

Technical Cabinet, Kitchen and Overhead Locker Storage Cabinets

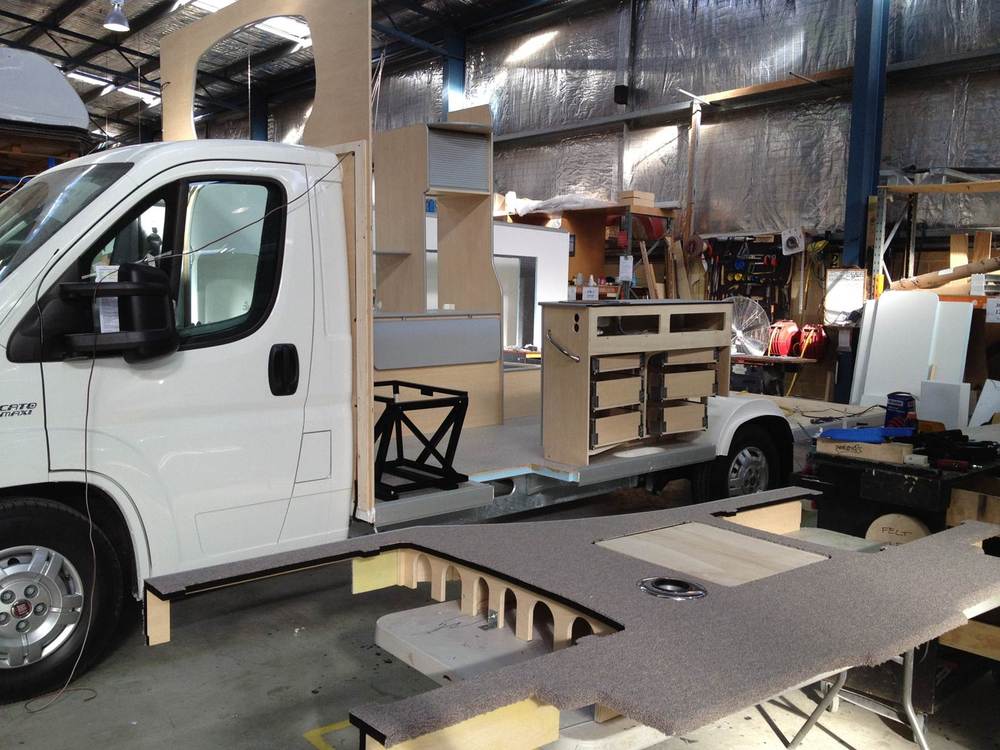

Body Assembly

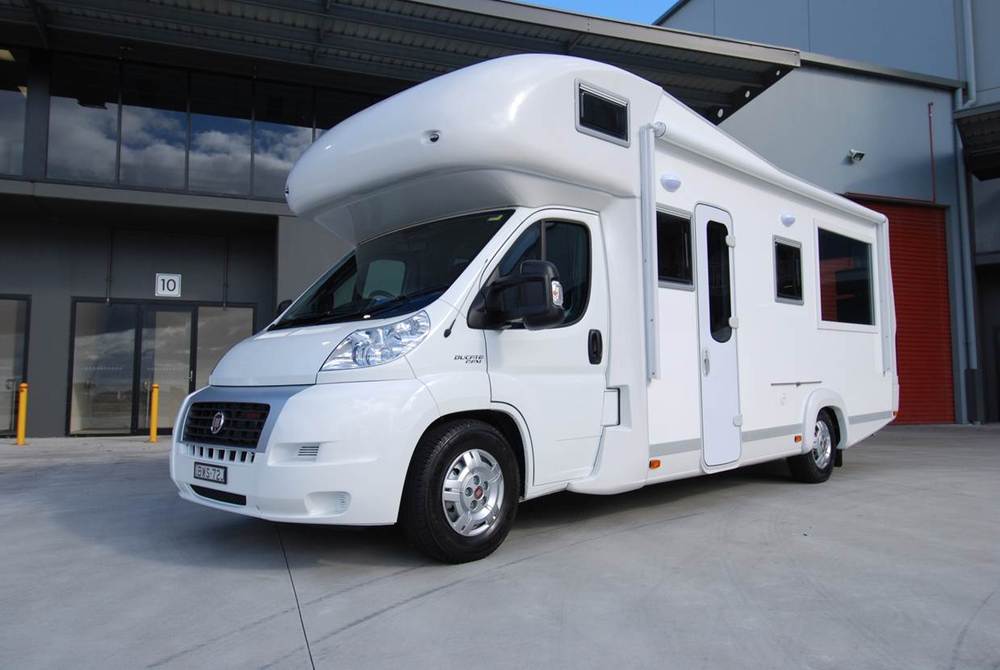

A few images of the completed vehicle

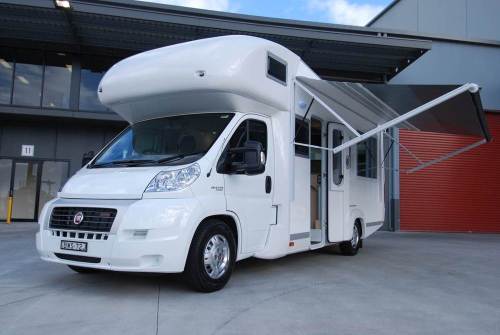

Front ¾ with Awning (Electric operation)

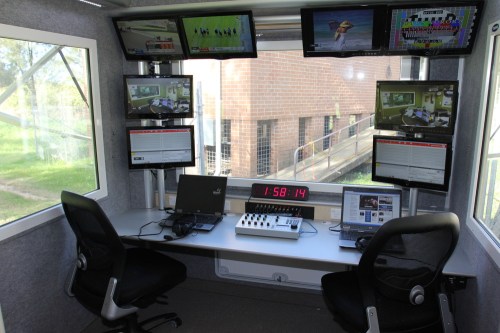

Broadcast Studio View


Broadcast Studio


Broadcast Studio

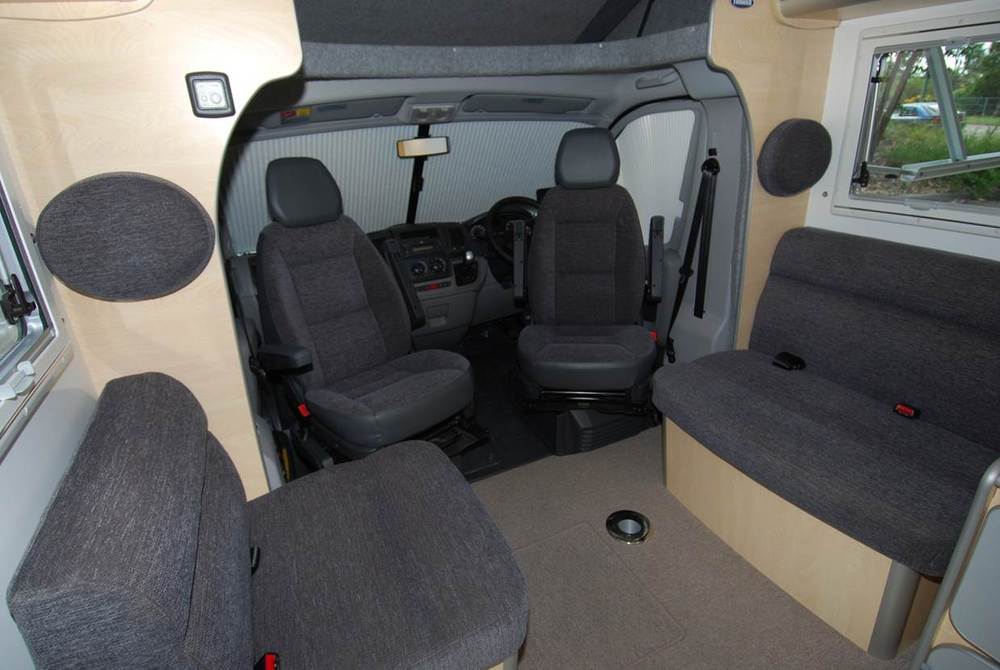

Lounge – Waiting Reception


View to Studio, Electrical Rack


View to Studio (Studio Access Door)


Broadcast Vehicle Layout


Hopefully I’ll catch up with the vehicle in a few week time.   Once it’s had all its broadcast equipment install and the Corporate graphics fitted!

4 responses to “UPDATE – SPV – Mobile Broadcast Vehicle – Live & On Air #SolidWorks #Photoview 360

    • Ronald,
      The vehicle as you see it, excluding the broadcasting equipment, was around $220,000 AUD on the road (including registration etc)

    • The vehicle as you see it, excluding the broadcasting equipment, was around $220,000 AUD on the road (including registration etc)
      The broadcast equipment was supplied by the Radio company
